Highly Competitive Performance - High Throughput, Excellent Sample Preservation Rate & Detection Sensitivity
● Product Introduction
The fully automatic nucleic acid extractor is an instrument that automatically completes the nucleic acid extraction process from samples using supporting nucleic acid extraction reagents based on the magnetic bead method.
It features high automation, fast extraction speed, stable results, and simple operation. Users can select instruments with different through-puts according to their needs to extract DNA and RNA from samples such as animal and plant tissues, whole blood, body fluids, and cells.
It is widely used in various fields including centers for disease control, clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbiology testing, food safety testing, animal husbandry, and molecular biology research.

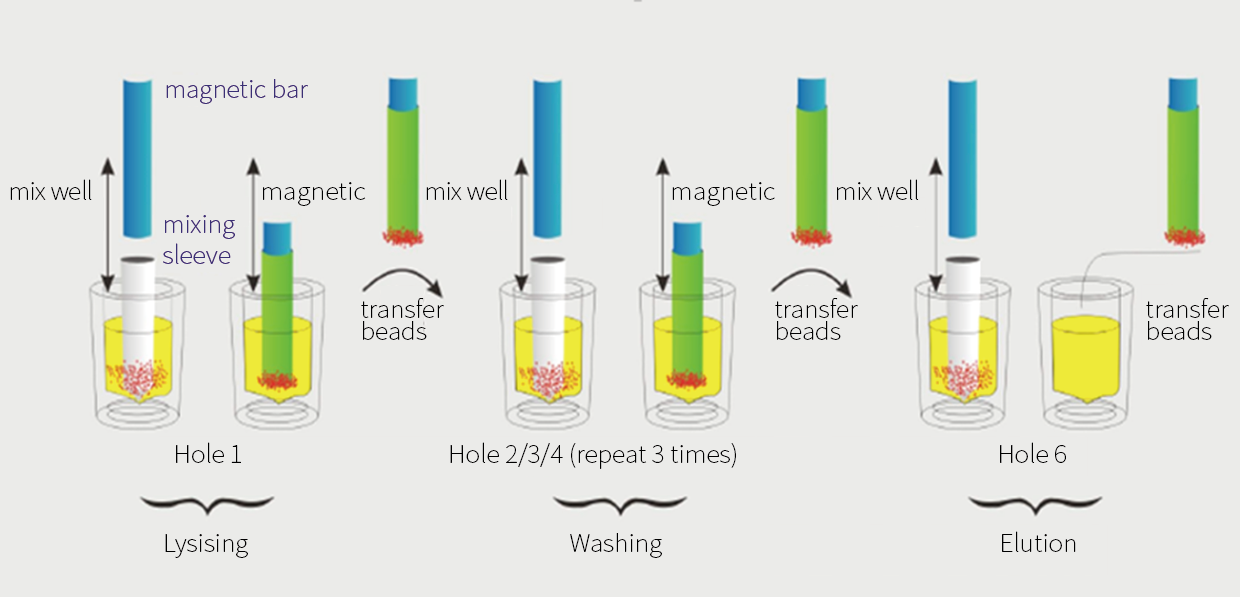

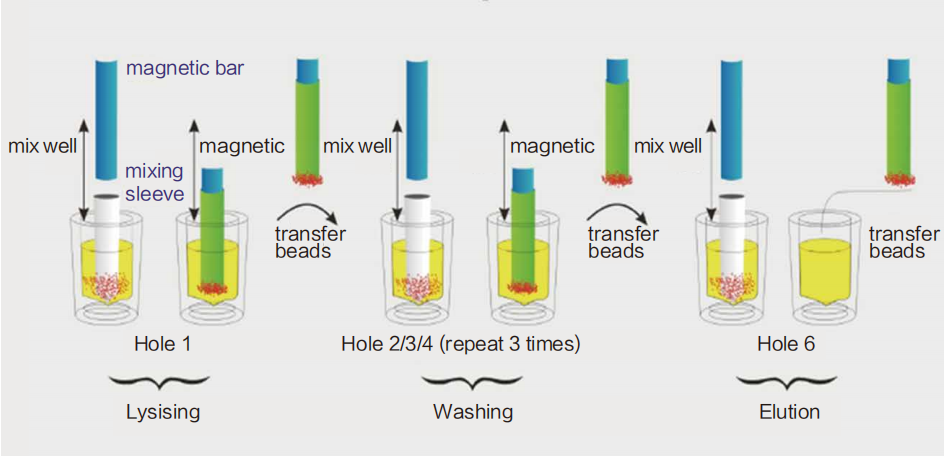

● Working principle
After biological samples are lysed by lysis buffer, nucleic acids are adsorbed from the lysis products onto the surface of nano-magnetic beads. Then, a magnetic rod is used to transfer the magnetic beads carrying nucleic acids to the washing buffer. After multiple washing steps, the magnetic beads are transferred to the elution buffer. Finally, nucleic acids are separated from the nano-magnetic beads, and DNA or RNA products are obtained.

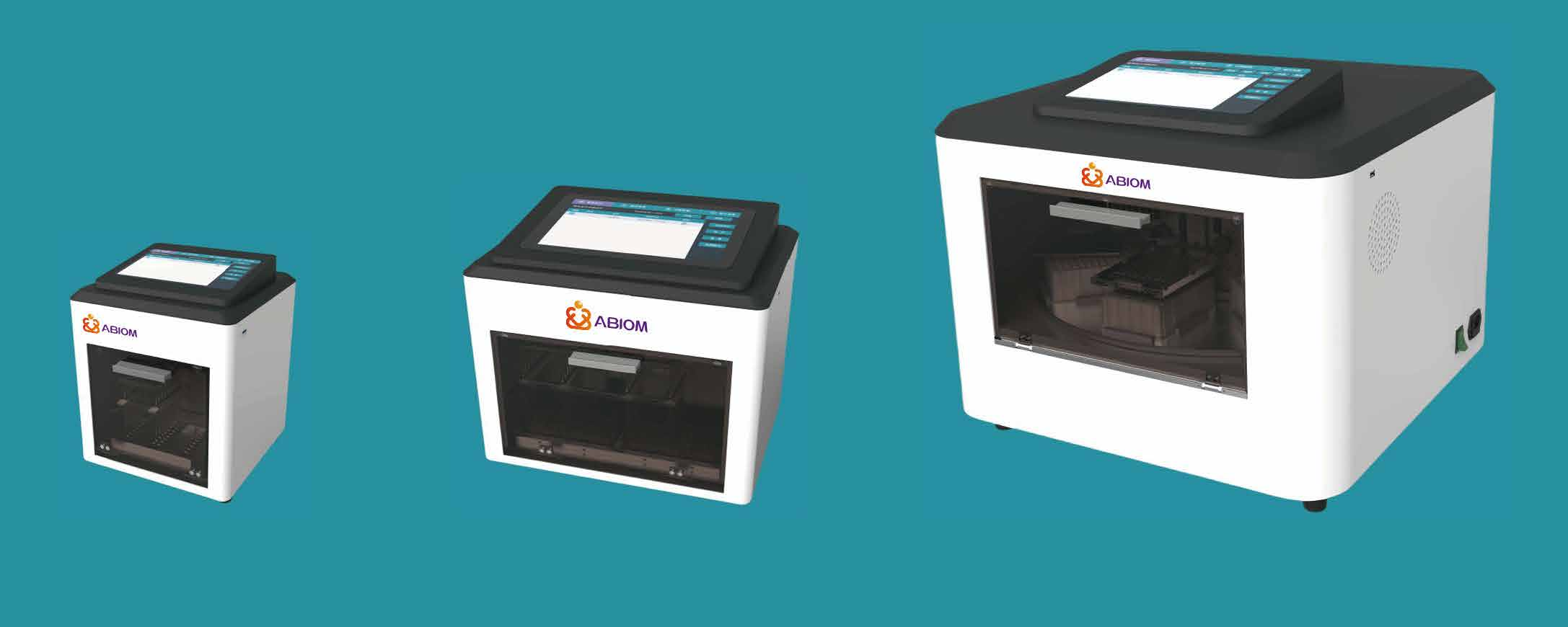

● Product Classification
● Technical Features
1.Open Program: The system is open, allowing users to program flexibly and freely, and is compatible with kits from multiple manufacturers.
2.Flexible Heating Settings: Pre-heating for lysis and elution is achievable.
3.Power Failure Protection: After an unexpected power failure and power recovery, the instrument will prompt whether to continue the experiment.
4.Safety and Reliability: The operation automatically pauses when the safety door is opened, and resumes automatically when the door is closed.
5.Magnetic Rod Protection: If the magnetic rod sleeve is not inserted, the instrument will prompt the user to prevent magnetic rod corrosion caused by operation without the sleeve.
6.Operation Modes: Supports code-scanning, list-based navigation, quick-access functions, and operation review—quick and easy.
7.Program Management: Programs can be imported or exported using a USB flash drive,enabling the use across multiple instruments.
8.Contamination Prevention and Control: Ultraviolet disinfection is applied to prevent cross-contamination between different batches.
9.Log Management: Records the operational status of the instrument for easy traceability.
10.Software Management: Software and firmware upgrades can be performed via a USB flash drive to to maintain the instrument’s optimal performance.
11.Motion Control: Independent control of magnetic rods and magnetic rod sleeves,ensuring low noise operation and extended instrument lifespan.
● Product Parameters and Performance Comparison
| Model | GS-AutoNA16 | GS-AutoNA32 | GS-AutoNA96 | GS-AutoNA192 |
| Model Throughput | 1-16 | 1-32 | 1-96 | 1-192 |
| Processing Time | 10-40min | |||
| Processing Volume | 30-1000μL | |||
| Consumables | 96 Deep-Well Plate + 8-Connected Magnetic Rod Sleeves | 96 Deep-Well Plate + 96 Magnetic Rod Sleeves | ||
| Number of Plate Positions | 1 | 2 | 8 | 10 |
| Inter-pore variation in purification (CV value) | <5% | |||
| Magnetic Bead Recovery Rate | >98% | |||
| Mixing Mode | Multi-speed Variable Oscillation | |||
| Lysis/Elution Temperature | Room Temperature - 120℃ | |||
| Operation Interface | 7-inch Color Touchscreen | 10-inch Color Touchscreen | ||
| Operating System | Android | |||
| Operating Language | Chinese/English | |||
| Internal Programs | More than 500 groups | |||
| Reagent Type | Magnetic Bead Method Open Platform | |||
| Noise | <55dB | |||
| Magnetic Rod Sleeve Detection | Available | |||
| Lighting System | Available | |||
| Sterilization | Ultraviolet Disinfection | |||
| Air Exhaust Method | Fan | |||
| Instrument Interfaces | USB, Wireless WiFi | |||
| Power Supply | AC220, 200W | AC220, 450W | AC220, 450W | AC220, 450W |
| Dimensions | 250×275×317mm | 355×285×350mm | 556×580×464mm | 556×580×464mm |
| Weight | 9.8kg | 16kg | 37kg | 39kg |
