Highly Competitive Performance - High Throughput, Excellent Sample Preservation Rate & Detection Sensitivity

Microfluidic Electrophoresis Analyzer

Certificate for Exportation of Medical Products/CFDA Certificate NO.20220602

CE Registration Letter No.

NL-CA002-2022-67716 (Netherlands/CIBG)

Request Quote

  Nano Escalation Chip



Detection process

  • The sample moves from the sample well through the micro-channels

  • The micro-channels of the glass chip are filled with a sieving polymerand fluorescent dye

  • The sample is injected into the separation channel

  • Sample components are electro-phoretically separated

  • Components are detected by the irfluorescence and translated into gel-like diagram (bands) and electropherograms (peaks)

  High-throughput Detection

Microfluidic Chip Analysis

Test 12 Samples in 30 min                                 Dozens of Times Faster than Traditional GGE


Traditional GGE

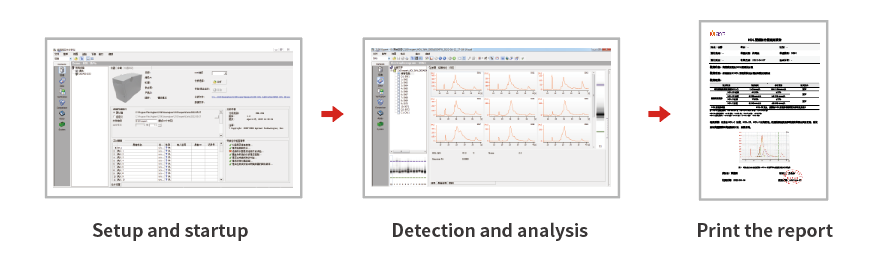

  Automatic Interpretation

  • Easy to use, self-developed core algorithm and software, instrument automation control

  • Automated interpretation and analysis of electrophoretic profiles by Gaussian fitting

  • Color-coded results are easy to see at a glance

  • The printed and output result report can be customized by the customer



  Instrument Information

ProductArdent Biomed Microfluidic Electrophoresis Analyzer
Structure and CompositionIt is composed of electrode system, chip system, detector system (optical), electronic control system and software system
Software InformationMicrofluidic chip analyzer software V1.0
Supporting ReagentsHDL-2b Subfractioning Kit (Microfluidic Electrophoresis)
RepeatabilityCoefficient variation (CV) ≤ 10.0%
Noise LevelThe noise value of each hole of the chip ≤ 1
AccuracyRelative deviation (B) ≤± 20.0%
PrecisionCoefficient variation (CV) ≤ 10.0%
StabilityRelative deviation (B) ≤± 10%
LinearityLinear Correlation Coefficient≥0.95
Lowest Detection Limit90% detection rate for reference
Processing Capacity12 samples /30 min
Host Size545 mm×450mm×340 mm
Host Weight21kg
